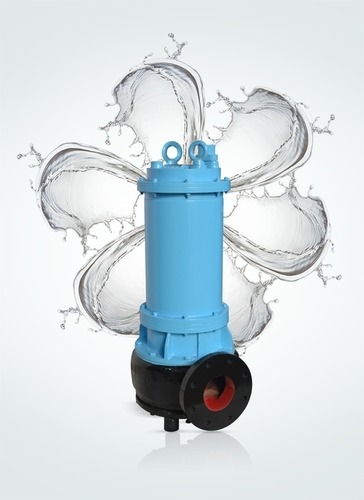

Industrial Submersible Pump

Industrial Submersible Pump
Industrial Submersible Pump
Product Code : 08
Product Description

Industrial Submersible Pump

We have earned the reputation of being one of the leading manufacturers, suppliers and exporters of excellent quality Industrial Submersible Pump. Sophisticated technology is used in our well-equipped manufacturing unit for designing of these of these pumps. Our pump is highly demanded in the market for its compact size, low power consumption and longer service life. Moreover, our Industrial Submersible Pump is very efficient in its operation and incur low operational & maintenance costs.

Special Features & Advantages:

The Motor

  • Motors are squirrel cage type totally enclosed, wet type induction motor suitable for Single Phase, 230V / 3 Phase, 415 volts, 50 c/s a.c. supply, filled with pure drinking water
  • Dual seals and sand guard are provided for protection and to avoid contamination of outside borewell water
  • Stator made of Stainless Steel pipe
  • Stator & Rotors are impregnated with varnish under vacuum and baked-under controlled temperature to avoid rusting in water
  • Stainless steel sleeves are shrink fitted at bearing locations on rotor shaft and ground to closer tolerance for smooth running
  • Winding wire is made from water resistance P.V.C. Coated / Poly coated copper wire
  • Rotor assembly is dynamically balanced for vibration free operation
  • Rotor bars are of electrolytic grade copper
  • All the bush bearings are water lubricated
  • Thrust bearing assembly is fitted with tilted pads resting on S.S. Balls and supported by locating pin to take the higher axial load
  • The revolving thrust plate is made from S.S. & fitted securely fixed to the S.S. Plate
  • Rubber diaphragm is provided at the base of the motor to equalise pressure caused by variation in temperature during operation
  • Lead cables are protected with rubber gromets
  • The motor is manufactured as epr IS 9283 / 1995
The Pump
  • It is vertical multistage centrifugal pump with either radial flow or mixed flow type Stainless Steel impeller
  • Impellers are dynamically balanced. All the stationary parts are closed grained graded CI with smooth profiles without any determental defects
  • All the Bearing Bush are self water lubricated type
  • The Pump shaft Sleeves & Coupling are manufactured from Stainless Steel
  • Impeller & sleeves are securely fixed on S.S. Shaft with S.S. Key
  • The bowls are locked by bolting to avail high Concentric accuracy and better reliability
  • A stream lined non return valve provided to prevent reverse rotation of pump assembly while switched off
  • S.S. Suction strainer is provided to avoid entry of suspended material in water
  • To protect cable from being wearing out during installation, cable guards are provided all along the pump body
The pump is manufactured as per IS: 8034 / 2002.

Application: -

Agriculture
  • Tubewell Irrigation
  • Openwell Irrigation
  • Drip Irrigation / Sprinkler Irrigation
  • River / Canal
Public Utilies
  • Service Water Supply
  • Fire Fighting Services
  • Process & Cooling Water Circulation
  • Booster Application
  • Raw & Treated WAter SErvices
  • Mining & Construction Sites
  • Ornamental Like Fountains.
Range
Borewell
Dia.
Model
Head
Meters
Capacity
Lmp
HP
Supply
80 mm
JT Series
8-100
20-65 Lpm
0.5 to 1.25
Single Phase
100 mm
JA Series
10-200
20-300 Lpm 0.5 to 3.00
1.0 to 7.50
Single Phase
Three Phase
125 mm
JF Series
10-200
40-550 Lpm 3.0 to 10.00
Three Phase
150 mm
JS Series
15-250
80-1300 Lpm 3.0 to 30.00
Three Phase
200 mm
JC Series
10-200
200-2200 Lpm 5.0 to 60.00
Three Phase
250 mm
JO Series
10-150
1000-3500 Lpm 10 to 100.00
Three Phase

Mono Set Pumps: -

Features
  • The pump and motor being single unit, no alignment, coupling is required
  • The motor is wet type, water cooled and water lubrcated type, available for 3 phase 415V and single phase 230V A.C. Supply
  • The motor s wound with PVC coated / Poly coated wire of reputed make
  • Stators and Rotors are manufactured with high quality silicon stamping to reduce the losses and thereby increasing efficiency of motor.
  • Stators and Rotors are mpregnated with varnish under vacuum and baked under controlled temperature to get hard finish
  • All rotating parts like impellers and rotors are dynamically balanced
  • It can withstand wide variation of supply voltage
  • Totally submerged in water, no priming required
  • No pump house required, initial investment is low
  • High overall efficiency results in lower power bills
  • Pollution free - no contimination of oil/grease
  • All C.I. Parts are as per S - 210 FG 200.
Applicaton:
  • Domestc water supply
  • For lifting water from underground tank to overhead tank in flats, housing complexes high rse buildings.
  • Agriculture: For open well application, where water level s not steady
  • Industries: For water crculating system, storage tank filling, Gardens, Hosptals, Garage etc.
Single Phase 230 V, 50 HZ
A.C. Supply
0.5 HP to 3.0 HP
35 lpm to 500 lpm
Three Phase 415 V, 50 HZ
A.C. Supply
1.0 HP to 30 HP
200 lpm to 2000 lpm
3 m - 50 m
  • These pump sets are manufactured as per IS: 14220 / 1994
  • Due to continuous R & D, the design and features are subject to be changed without prior intimation.
